Design for Safety: Tips for Proactive Risk Reduction

| By Alan McCurdy, independent marketing consultant

Considerate layout can support minimize basic safety pitfalls at process plant sites by proactively eliminating doable hazards and modifying personnel behaviors

Basic safety is an critical price in any firm, but is significantly important in the chemical method industries (CPI) when the design, development, procedure and routine maintenance of manufacturing facilities is worried. No corporation or group would like to have personnel hurt, or to cause damages, and no entity needs to locate itself in a circumstance in which lawsuits are submitted in opposition to it.

The design job has an significant purpose in guaranteeing safety since numerous threats can be “engineered” to be eliminated or diminished. The designer’s expertise, expertise and values can be leveraged to ensure that a facility can be safely constructed, operated and preserved. While personalized protective machines (PPE) is of crucial value to protecting against and reducing accidents, worker actions can be just as essential a aspect in irrespective of whether or not accidents occur, and modifying worker behaviors via design and style conclusions can be a quite powerful way to stop and lower injuries.

For design and style professionals, a central security idea is striving to be proactive. Spending sources to avert injuries is far extra cost-productive than shelling out for the physical and emotional agony, the misplaced time and health care treatment from an damage after it happens. Planning with proactive security ideas in brain can generate a facility or course of action with much less dangers and decrease threat. And a structure that eradicates, cuts down or mitigates hazards and challenges upfront is an inherently safer layout. This report delivers a set of guidelines and best tactics to contemplate in designing vegetation and process units that proactively improve safety and reduce danger. These are only some of the things to be considered for a harmless style. Unique apps will possible need more concerns.

System and plant structure

Style specialists need to take into account offering enter into the design organizing, checkout and commissioning preparing, as it pertains to safety, as effectively as into functions and routine maintenance processes. The pursuing recommendations are designed to aid start out off a project with a protected structure basis.

Match design foundation to company. A smart commencing stage is to create a design and style basis that is steady with the assistance. This contains the adhering to things:

  • The basis should include things like least, normal and highest flowrates, temperatures, and pressures for the method. Be aware if these situations cycle routinely and if the process is constant or batch. Identify the style ability, once-a-year running several hours, and seasonal variation
  • Use ideal structure specifications and elements of development for the supplies, approach circumstances, and devices. Take into consideration the materials’ properties: flammability, corrosivity, reactivity and wellness hazards in models and specs
  • Take into consideration a “requirements exchange” and a threat examination early in the structure course of action. These paperwork can be current as the layout progresses. A prerequisites trade refers to a assembly (or series of meetings), in which the consumer (which include operations and routine maintenance team) state their demands for the task. This could involve demands on course of action general performance, the want for precise operations (for example, an ability to place sure manage loops in handbook manage throughout startup or shutdown), or maintenance requirements (such as a backup for specified devices, obtain to equipment for creating changes, or additional valves to enable for equipment removing without the need of extensive draining)
  • Build P&IDs (piping and instrumentation diagrams) or PFDs (course of action flow diagrams) to describe the process for structure demands. P&IDs and PFDs are crucial for proper functions and maintenance
  • Develop electrical area classification (also recognized as hazardous region classification HAC) layouts that involve routine, intermittent or crisis venting of hazardous or flammable components. HAC layouts provide the electrical installation prerequisites for machines, equipment, conduits and junction bins
  • Perform toward building a design and style that can be started out up or shut down properly. Think about backup power and uninterruptable ability materials to avoid decline of manage or unexpected emergency shutdowns
  • Produce the prerequisites for industry analytical products. This includes correct sampling place, instrument spot and venting. Factor in the size of the sampling line to prevent lag time in the assessment. Do not ignore to take into account gasoline-cylinder storage and accessibility
  • Structure adequate pipe and vessel tension reliefs (from liquid/vapor expansion from interior temperature and sun publicity).
  • Layout satisfactory pipe and products supports, contemplating pipe and vessel motion from thermal enlargement and gear vibration
  • Structure foundations and buildings thinking about the whole bodyweight of vessels with contents, system loading, wind and snow masses, earthquake, seasonal climate conditions and soil-bearing ability
  • If ideal consider hearth defense programs, and safeguard structural steel from fireplace impingement with utilized fire protection

Safe procedure and upkeep



Figure 1. Harmless obtain to gear, such as the pump with shaft guard demonstrated right here, lessens chance all through servicing activities

When the plant or procedure at some point commences operation, staff will want to transfer in and all over the method machines, so it is appealing for designers to assume about how operators and servicing staff can safely access gear and checking and handle products (Determine 1). It is far more value efficient to contemplate and strategy for functions and routine maintenance all through the design and style section than to make changes for safer routine maintenance and operation just after the layout and structure are finished. This contains the subsequent things to consider:

  • Take into consideration entry to valves, devices and products, such as clearance for swing spots for cabinets and doors. A style and design that will allow accessibility will lower the selection of pre-startup punch list items. For example, the pursuing steerage ought to be thought of: preserve a minimum clearance of a few feet of workspace (boost clearance if machines is desired for do the job) ground-amount entry is most well-liked over entry at elevation reduce “head knockers” by routing elevated pipe or conduits higher than head room or providing “walkover” platforms offer for ample platforms, when having into account the get the job done specifications and stairs are usually safer than ladders (Figure 2)

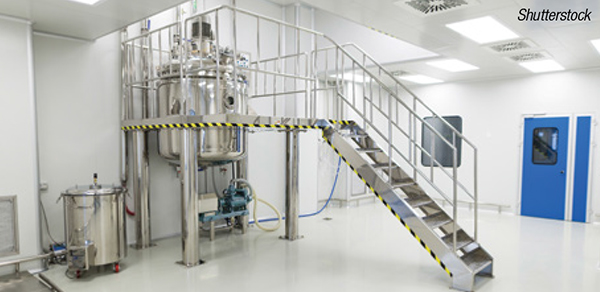

    Figure 2. When platforms, these types of as the just one proven here, are expected, it is safer to use stairs about ladders

  • Offer steerage for gear, vessel, pipe, valve and cupboard labeling, such as movement path for pipes. Long term tags or labels are improved than marker or paint-stick labeling
  • Style and design suitable lights and power resources for operations and routine maintenance, so that darkish places are minimized and the will need for extension cords is avoided
  • Take into consideration redundancy in components, specifically for crucial products. An in-line spare will permit a prepared maintenance, alternatively of an unplanned shutdown. The storage places for spare areas and tools ought to be considered also
  • Ensure sufficient isolation of tools and instrumentation. Use double block valves and bleeds (to vent). Also, design a harmless route for the vented or drained materials.
  • Take into account the lifting and house need for tools removing (pumps, valves, filters). If appropriate, layout for davits or overhead rails
  • Take into consideration the particular and vehicle targeted traffic movement and house devices and facilities appropriately. Pave paths for staff and cars. Take into consideration parking demands for functions and servicing
  • Supply satisfactory egress (two means in and out) and take into consideration the potential hazards, so an egress path will not be blocked by a hazard
  • Consider and minimize sound. Sizing equipment and pipelines to decrease equipment rotational speed or velocities, and use insulation and style for noise abatement

Constructing and web page things to consider. Web-site format can also have an influence on security and risk reduction. Listed here are a established of factors similar to website layout that can assistance cut down security challenges:

  • Lessen the probable stock of raw materials, intermediates and items that are needed to be stored on web-site at a specified time. In addition to amount, check out to limit the electrical power required in the course of storage, such as for temperature and strain
  • Take into consideration the acceptable spacing of machines, properties and setbacks from home lines at the internet site
  • Involve lighting safety, wind and snow, and earthquake style and design prerequisites
  • Take into consideration physical web-site-safety prerequisites (including fencing, access handle, stability cameras)
  • Style and design closed-loop fill/vapor methods as feasible. Closed-loop filling programs give a vapor return line from the vessel currently being crammed back to the vessel that is currently being emptied (Determine 3). The aim is to stop vapor from venting to the atmosphere. This setup has each basic safety and environmental positive aspects

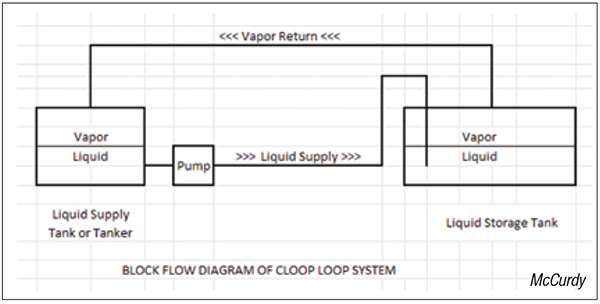

    Determine 3. A shut-loop filling method, like the 1 proven in the diagram, offers a vapor return line from the vessel getting filled to the vessel being emptied

  • Enclose or winterize tools
  • Assess rain and storm-h2o runoff drainage
  • Take into account the proper containment for liquid vessels. This features the dimensions for comprehensive volume and rain accumulation. Appraise rainwater accumulation and means to drain, possibly with sumps or drains. Designers must also consider into account how to accessibility the contained gear

Design preparing. Create a style that lets the preparing needed for a harmless set up on a practical agenda. Efficient and complete development scheduling will decrease the need to have to rush do the job, get the job done more several hours or take shortcuts with the building methods. The pursuing are some distinct factors relevant to design preparing:

  • Deliver clear design drawings and conduct interdisciplinary opinions to lessen clashes (for instance, basis misalignment with pipe format, or conduit runs that strike pipe operates)
  • Produce a style that enables pre-fabrication the place relevant, so operate can be accomplished under controlled conditions
  • Offer enter into a daily threat investigation or career safety investigation (JSA) for the duration of construction actions
  • Right before executing piping or electrical tie-ins, seek the advice of with the owner’s staff so the acceptable isolation and de-energizing jobs are done. Use tools and valve lock-out procedures that incorporate the appropriate communications and controls
  • Decrease the complexity of lifted hundreds, both of those in pounds as effectively as lifting machines or materials in close proximity to dangers (which includes electrical energy lines, present course of action gear and offsite amenities)
  • When several crews are working on web-site at the similar time, contemplate the pitfalls of “simultaneous operations,” so crews stay out of each other’s perform places

Commissioning.The engineering qualified should really take part in pre-start off-up walk-arounds with design, layout, functions and servicing crew associates with the pursuing goals:

  • Consider journey and pinch factors, head titties, valves that can be brushed open up, and so on
  • Do not neglect bollards and other devices to protect piping and gear from impact, equally from inner or external targeted traffic
  • Build a punch checklist and prioritize the products as “before” or “after” startup. These are things that were skipped in design or design, these as vents, or drains, gear guards, ways, handrails, and labeling. Some items may possibly be discretionary if not needed for the task to be protected, meet specifications or perform as intended.

For command rooms. Management-area design can also enable lower likely hazards and boost safety.

  • Contemplate automation with method info readily available in a manage place or remote site. Remote automation lessens the need to have to operate devices outside
  • Think about regulate-panel heights relative to the ceiling heights. Conduits will typically be run possibly from overhead (or below the ground). In each individual case, sufficient place for development and maintenance is necessary
  • Look at the regulate area layout and permit house for workstations, enclose door swings and wall penetrations
  • Sizing the heating, air flow and air conditioning (HVAC) techniques of the facility to contain management-procedure heat load
  • Design for adequate electrical power receptacles to lower the use of extension cords

PPE and work basic safety

The use of PPE is now a least standard. Depending upon the get the job done environment, the typical difficulty tough hat, security glasses and metal-toed boots has expanded to involve get the job done gloves, goggles and facemasks, listening to protection, fireplace-resistant garments and a host of atmospheric monitors.

Occupation-safety assessment. As design experts attain practical experience, tactics for proactively getting rid of hazards and lowering staff challenges via design and style selections turn out to be much more instinctive and intuitive. On the other hand, a systematic and extensive method to assessing dangers can assistance recognize pitfalls that could probably result in unplanned incidents and potentially negative health repercussions. A JSA can discover probable hazards to personnel, as well as prospective safeguards to get rid of or mitigate them. A detailed JSA could possibly deal with the adhering to:

  • “Line of fire” injuries from applications, machines, cars, lifted loads and so on
  • “Fall” injuries resulting from slips, outings and falls from elevated-top positions
  • Thermal accidents from contact with sizzling surfaces or flames
  • Dangerous-materials exposure (by means of immediate call, inhalation or ingestion)

Hazard and danger assessments

Hazard and danger assessments, the two inside and outside the facility can be an vital tool in growing security through design and style. Hazard and hazard assessments are crucial early in the design progression, so the requirements that have an affect on basic safety can be provided early on, and design adjustments would not involve fantastic expenditure. Direction would contain the pursuing tips:

  • Structure enough instrumentation, valves and examine valves to control and isolate the system
  • Think about the spots of vents (equally program and crisis), and issue these places into staff places and electrical classifications
  • Consist of the proper winterization of plant assets
  • Contemplate permitting prerequisites, the two current kinds and in these in the foreseeable future

Primarily based on the results of hazard and possibility assessments, security methods with redundant instrumentation need to be picked out for essential systems. For crucial controls, look at twin, redundant devices that use diverse systems or doing the job principles. For force-relief devices, guarantee that they are of satisfactory dimensions or volume, and that they are redundant in nature.

For a lot more on hazard assessments, see the “Facts at your Fingertips” column on hazard-identification methods.

Edited by Scott Jenkins

Creator

Alan McCurdy is a senior task supervisor, not long ago retired from Valdes Engineering Company. McCurdy (E-mail: [email protected]) has above 40 several years of practical experience in task management of engineering design tasks from strategy to design and style and procurement and building to startup. Projects include petroleum refining, substances and normal gasoline utilities. McCurdy holds a bachelor’s diploma from Carnegie Mellon University and a master’s in company administration diploma from the University of Louisville.
